Product Description

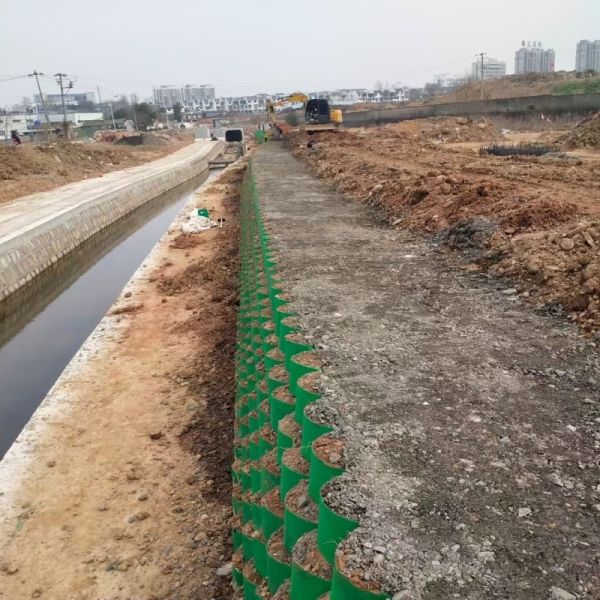

Geocell Solutions is a high performance three dimensional cellular confinement system manufactured from HDPE sheets welded by advanced ultrasonic technology. When expanded on site, it forms a honeycomb like structure that can be filled with soil, gravel, or concrete to create a stable load bearing layer.
This system significantly improves the structural integrity of weak subgrades by confining infill materials within individual cells. The lateral confinement reduces displacement and enhances load distribution, making it an ideal solution for road construction and infrastructure projects.
Compared to traditional aggregate reinforcement methods, Geocell Solutions reduces the required material thickness and minimizes construction costs. It is especially effective in soft soil environments where conventional methods struggle to maintain stability.

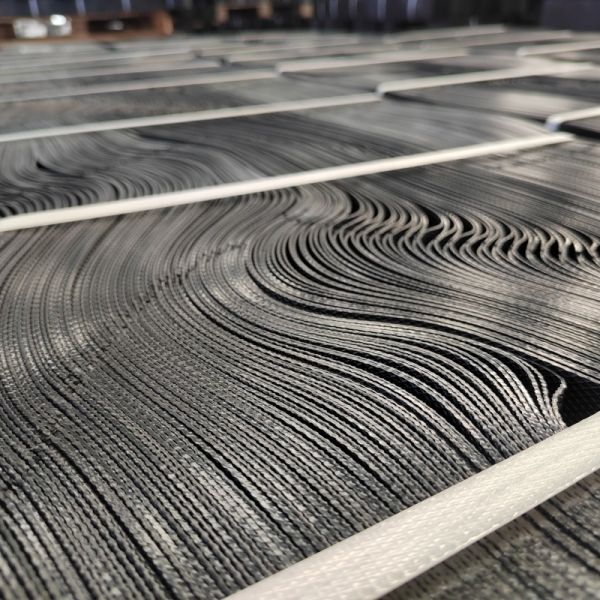

The product is lightweight and foldable, allowing efficient transportation and rapid installation. Once deployed, it adapts to uneven terrain and provides long term resistance against environmental factors such as UV radiation, chemical exposure, and mechanical stress.
It is widely used in highways, access roads, and heavy load traffic areas where durability and performance are critical.
Technical Data
| Category |
Parameter |
Value |
| Material |
Polymer Density |
0.935 to 0.965 g cm3 |
| Structure |
Type |
HDPE Cellular System |
| Geometry |
Cell Depth |
75 100 150 200 mm |
| Geometry |
Welding Distance |
330 to 1000 mm |
| Thickness |
Sheet Before Texturing |
1.27 mm |
| Thickness |
Sheet After Texturing |
1.52 mm |
| Mechanical |
Seam Peel Strength |
1065 to 2840 N |
| Mechanical |
Seam Efficiency |
100 percent |
| Durability |
ESCR |
5000 hours |
| Additive |
Carbon Black |
1.5 to 2.0 percent |
| Size |
Expanded Cell |
320x287 475x508 mm |
| Size |
Panel Dimension |
up to 6.5 x 4.5 m |
Why Choose Us
- High strength welding ensures structural stability
- Strict quality control with international standards
- Customizable specifications for different projects
- Fast delivery and stable production capacity
- Professional engineering support
FAQ
Q: How does Geocell Solutions improve road performance
A: It distributes loads and prevents soil displacement.
Q: Can it reduce construction cost
A: Yes it reduces material thickness and labor cost.
